k, So here's pics and the run down of how to do this:

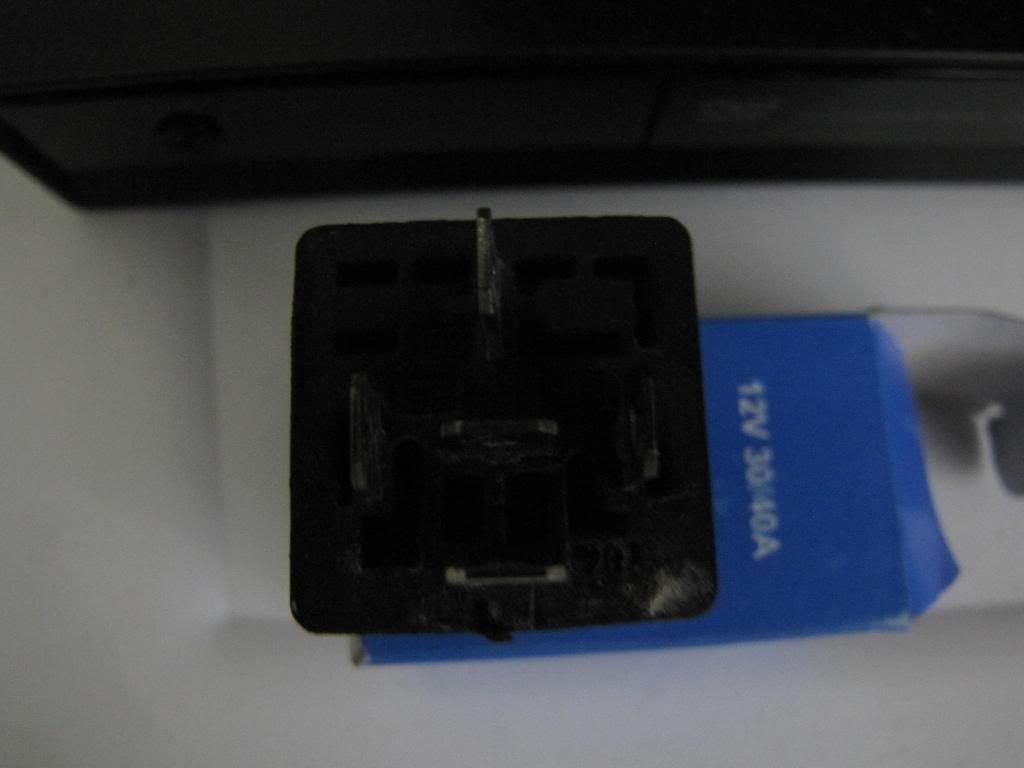

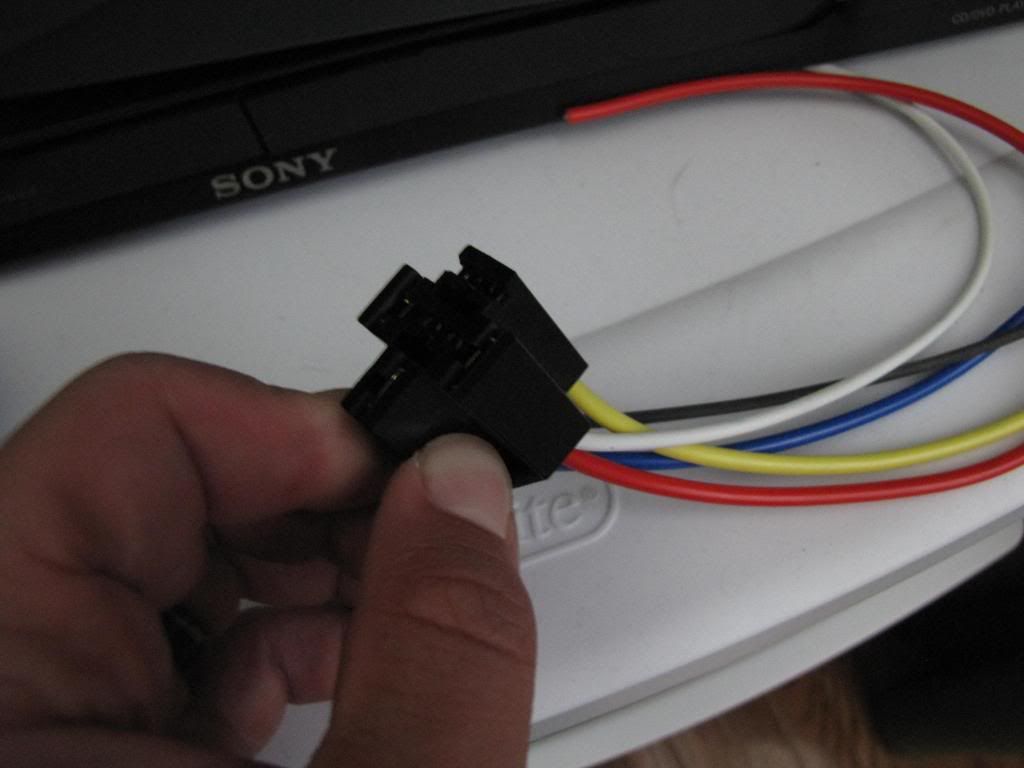

First off you need a relay and harness that will look like this:
Here's a pic of the wiring diagram on the box.... these make no sense to me. Apparently the big square with the line through it is battery and the other two are 30amps that go where you need to hook into. The red wire in your harness can be pulled out, you don't need it.
Black goes to ground
Mine is hooked into where the little black relay (not the one your installing) is on your frame.
Yellow goes to battery

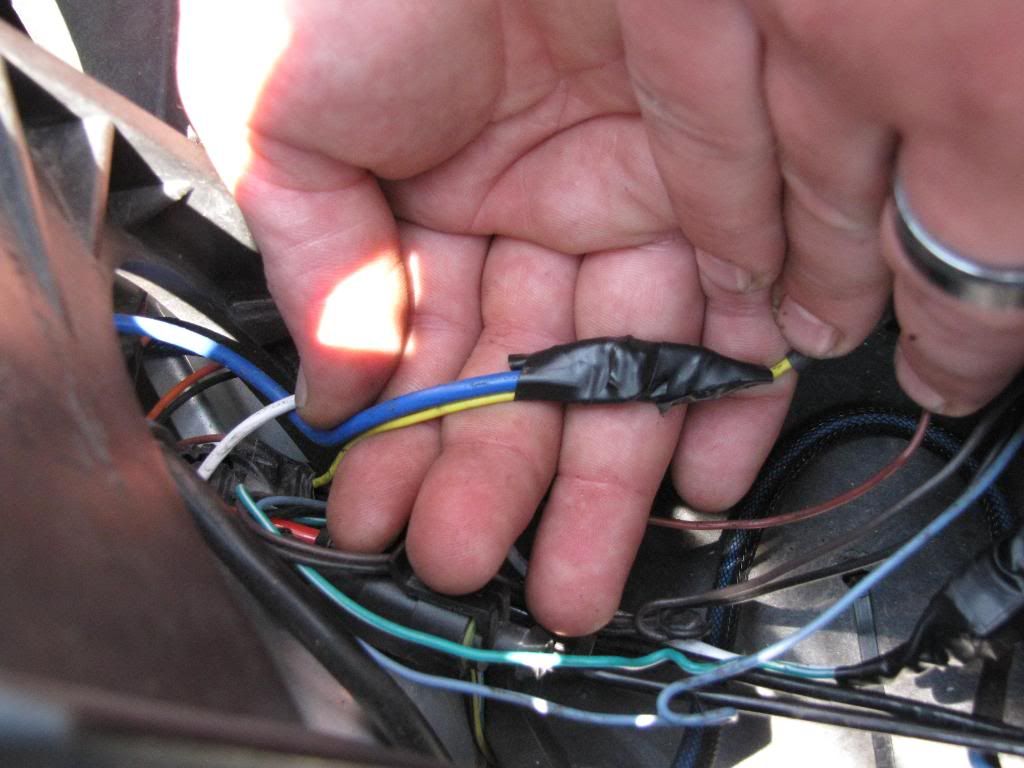

White goes to the green on your wiring harness for your lights (lows)
Blue goes to the yellow on your wiring harness for your lights (highs)
Plug in your relay and you should be good to go.
Finished result is the pics in the above post I will get night time shots of inside my car with just lows, then just highs, then both highs and lows (my relays pulled out right now).
