Help FogLight Wire Hardness

So I was advised to buy this harness, for my fog trim piece I bought. The harness was exactly the same except for the plugin underneath the radiator. Could I cut off the extra length to make it fit? Also what is that plugin for? Its right next to the bolted down screw ground underneath the orange or green radiator tank. The only difference is the purple and pink wire from the bigger hardness, what are they for?


NDcobalt is offline
Sponsored Links
Advertisement

post #2 of 11 (permalink) Old 12-23-2011, 04:15 PM
Super Moderator
YourCobalt.com Premium Member



Coby7's Avatar

Join Date: Oct 2011
Location: Magnetic Hill, New-Brunswick
Posts: 11,820
Garage
Did you get the mating plug with the new harness? Your suppose to move the 4 existing wires( I think it's Horn, hi-beam RH, lo-beam RH and blicker /park RH) to the new male plug. Pink, purple are fog lights I believe. Don't quote me on this because it is also vehicle year dependant.

Every minute spent angry is a happy minute lost for ever and ever!!!
Drives 2016 Cocoa Buick Encore 1.4L Turbo auto KL4CJDSB2GB652675
Drives 2016 Sunset Orange Trax LT1 1.4L Turbo auto 3GNCJPSB8GL142716

Never drive faster than your guardian angel can fly

Last edited by Coby7; 12-23-2011 at 04:50 PM.
Coby7 is offline
post #3 of 11 (permalink) Old 12-23-2011, 04:22 PM Thread Starter
Contributor

Join Date: May 2010
Posts: 288
Garage
Quote:
Originally Posted by Coby7 View Post
Did you get the mating plug with the new harness? Your suppose to move the 4 existing wires( I think it's Horn, hi-beam RH, lo-beam RH and blicker /park RH) to the new male plug. Pink, purple are fog lights I beleive. Don't quote me on this because it is also vehicle year dependant.
Thats what I thought to, but I was told it was my windshield wiper plugs and the 3x3 fuse box is where my real fogs are at. It even showed the two purple fog wires.

NDcobalt is offline

post #4 of 11 (permalink) Old 12-23-2011, 05:10 PM
Super Moderator
YourCobalt.com Premium Member



Coby7's Avatar

Join Date: Oct 2011
Location: Magnetic Hill, New-Brunswick
Posts: 11,820
Garage
Well, I know fog and horn are in the same plug. according to diagram. Plug C3. I will study diagrams and come back to this thread.

Every minute spent angry is a happy minute lost for ever and ever!!!
Drives 2016 Cocoa Buick Encore 1.4L Turbo auto KL4CJDSB2GB652675
Drives 2016 Sunset Orange Trax LT1 1.4L Turbo auto 3GNCJPSB8GL142716

Never drive faster than your guardian angel can fly

Last edited by Coby7; 12-23-2011 at 06:32 PM.
Coby7 is offline
post #5 of 11 (permalink) Old 12-23-2011, 06:55 PM
Super Moderator
YourCobalt.com Premium Member



Coby7's Avatar

Join Date: Oct 2011
Location: Magnetic Hill, New-Brunswick
Posts: 11,820
Garage
OK, found it on the GM server, so here it is for the six pin connector. Man was I off!!!
Attached Thumbnails
Click image for larger version

Name:	C121 inline harness.jpg
Views:	741
Size:	69.9 KB
ID:	142

Every minute spent angry is a happy minute lost for ever and ever!!!
Drives 2016 Cocoa Buick Encore 1.4L Turbo auto KL4CJDSB2GB652675
Drives 2016 Sunset Orange Trax LT1 1.4L Turbo auto 3GNCJPSB8GL142716

Never drive faster than your guardian angel can fly
Coby7 is offline
post #6 of 11 (permalink) Old 12-23-2011, 06:57 PM
Super Moderator
YourCobalt.com Premium Member



Coby7's Avatar

Join Date: Oct 2011
Location: Magnetic Hill, New-Brunswick
Posts: 11,820
Garage
Now to find the other one.

Every minute spent angry is a happy minute lost for ever and ever!!!
Drives 2016 Cocoa Buick Encore 1.4L Turbo auto KL4CJDSB2GB652675
Drives 2016 Sunset Orange Trax LT1 1.4L Turbo auto 3GNCJPSB8GL142716

Never drive faster than your guardian angel can fly
Coby7 is offline
post #7 of 11 (permalink) Old 12-23-2011, 08:29 PM Thread Starter
Contributor

Join Date: May 2010
Posts: 288
Garage
Man thanks Coby7! Thats awesome that you found the wire diagram, really helpful! Right now my I replaced my old headlight harness with this harness I found online with fogs. eBay - New & used electronics, cars, apparel, collectibles, sporting goods & more at low prices

I have one extra plug that is not connected to anything and my car does not turnover. We checked the starter with a volt meter and it has power. I also have a new one-way auto starter put into my car. I am wondering if that is it or if there is something wrong with the harness.

NDcobalt is offline
post #8 of 11 (permalink) Old 12-23-2011, 08:40 PM
Super Moderator
YourCobalt.com Premium Member



Coby7's Avatar

Join Date: Oct 2011
Location: Magnetic Hill, New-Brunswick
Posts: 11,820
Garage
What does the connector look like?I think you might not have right year harness...

Every minute spent angry is a happy minute lost for ever and ever!!!
Drives 2016 Cocoa Buick Encore 1.4L Turbo auto KL4CJDSB2GB652675
Drives 2016 Sunset Orange Trax LT1 1.4L Turbo auto 3GNCJPSB8GL142716

Never drive faster than your guardian angel can fly
Coby7 is offline
post #9 of 11 (permalink) Old 12-23-2011, 09:09 PM Thread Starter
Contributor

Join Date: May 2010
Posts: 288
Garage
Quote:
Originally Posted by Coby7 View Post
What does the connector look like?I think you might not have right year harness...
Yea I dont have the right year but when I turn my car on, the lights and everything works.

---------- Post added at 11:01 PM ---------- Previous post was at 10:49 PM ----------

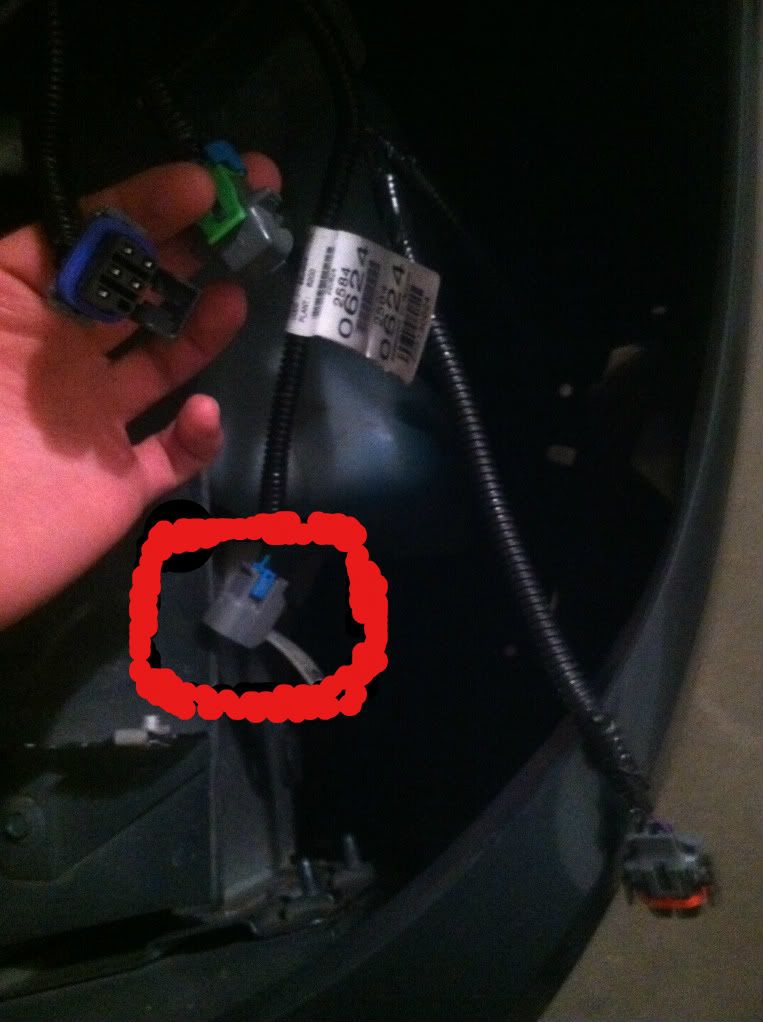

The first pic is from the right side of the wire harness, and the left side the one circled is a plug that I have no idea where it goes.
I'm in desperate need of help, because I need to pick up my girlfriend who is flying in to bismarck on tuesday.

---------- Post added at 11:09 PM ---------- Previous post was at 11:01 PM ----------

(update) I'm pretty sure that coby answered the plug that is circled as my horn wire.


Last edited by NDcobalt; 12-23-2011 at 09:05 PM.
NDcobalt is offline
post #10 of 11 (permalink) Old 12-26-2011, 08:04 AM Thread Starter
Contributor

Join Date: May 2010
Posts: 288
Garage

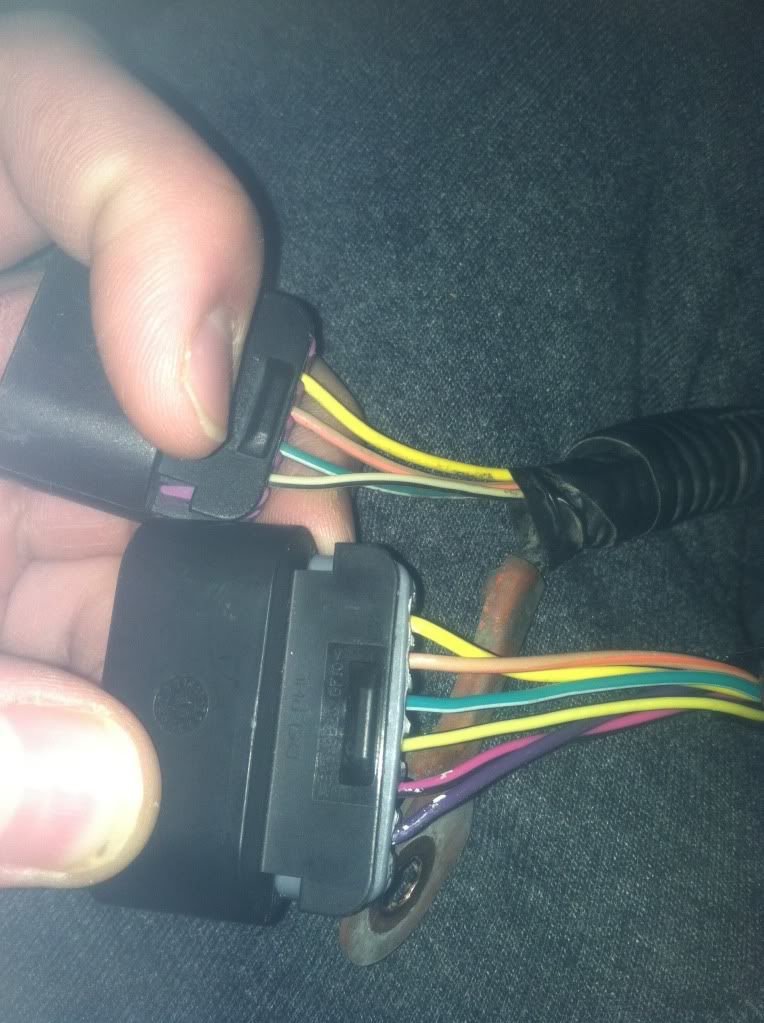

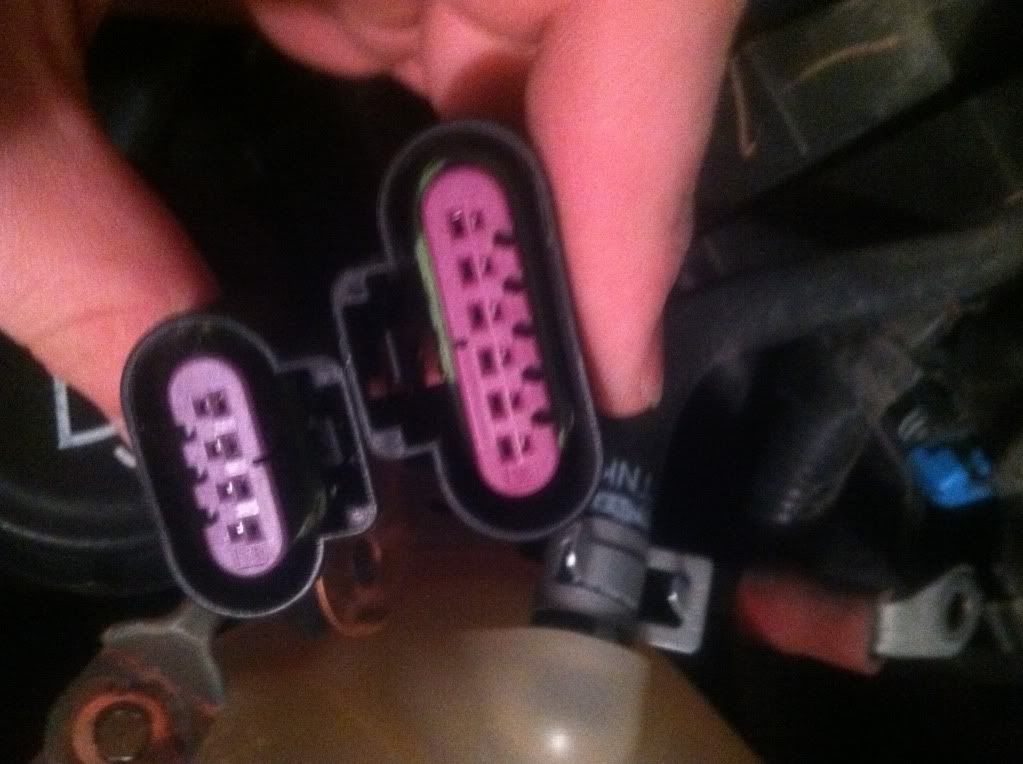

So I forgot to tell everyone that I did switch the two plugs around, I cut off the 6 way plug and spliced in the 4 way. I seen that only my binkers and brights work, and when I press the wiper solution button or try to use the wipers; it doesnt work. Is this the problem? I wired them according to the color, only purple and pink aren't hooked to anything.
