My Retrofit Start to Finish

Mini H1 Retrofit kit Purchased:
Mini H1 Projectors
Morimoto 3Five *ballast
3Five 4300K HIDs
Mini Gatling Gun Shroud
Butyl Rubber Glue
MotoControl Bixenon: 9007/9004
194 drl leds
3157 switchback led turn signals
50W blinker resistors
CCFL inverters
White CCFL'S

Il update on progress.

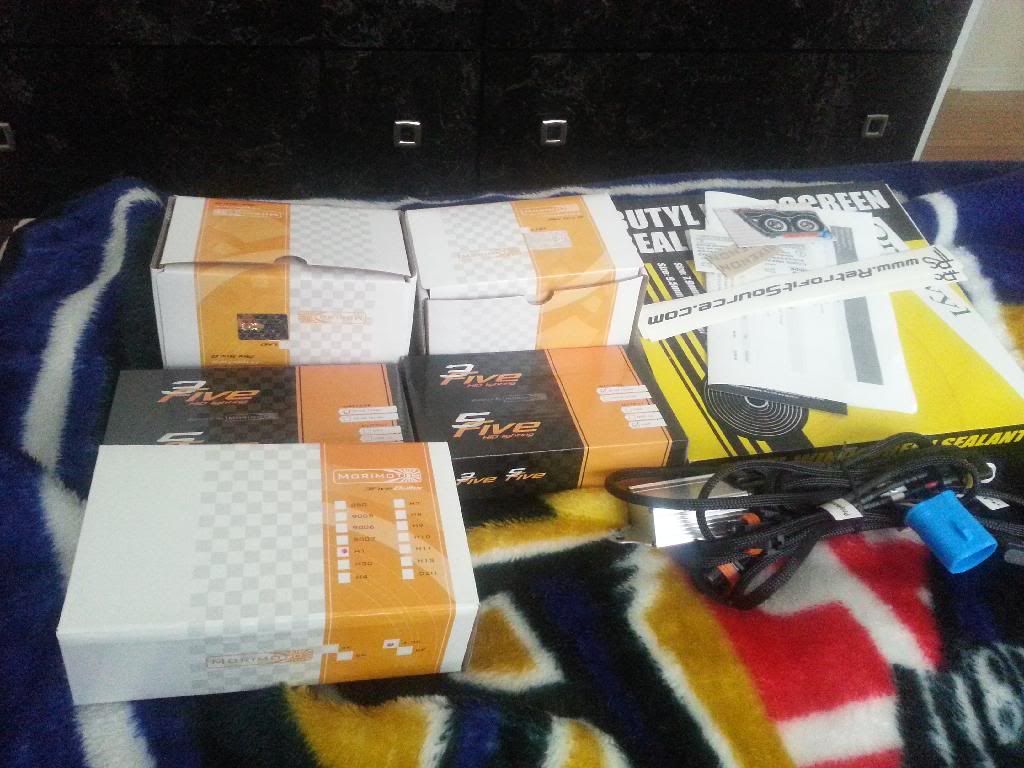

My Retrofit kit


My projectors

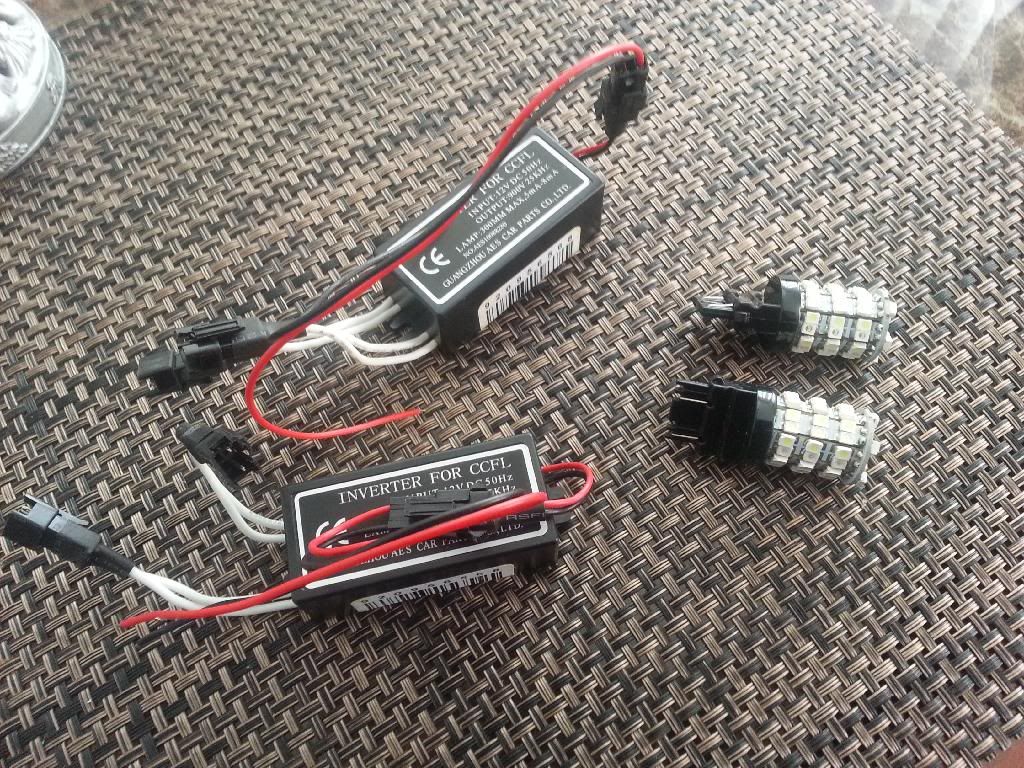

My switch backs & ccfl inverters

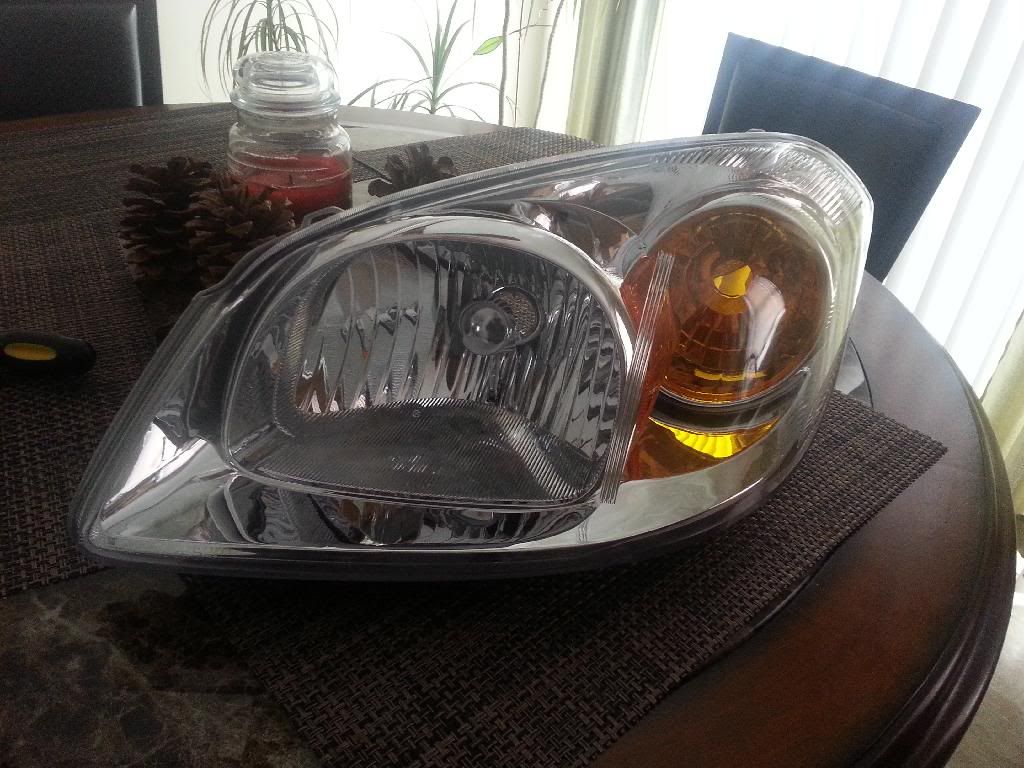

Full headlights (Not disassemble)

One Headlight disassemble

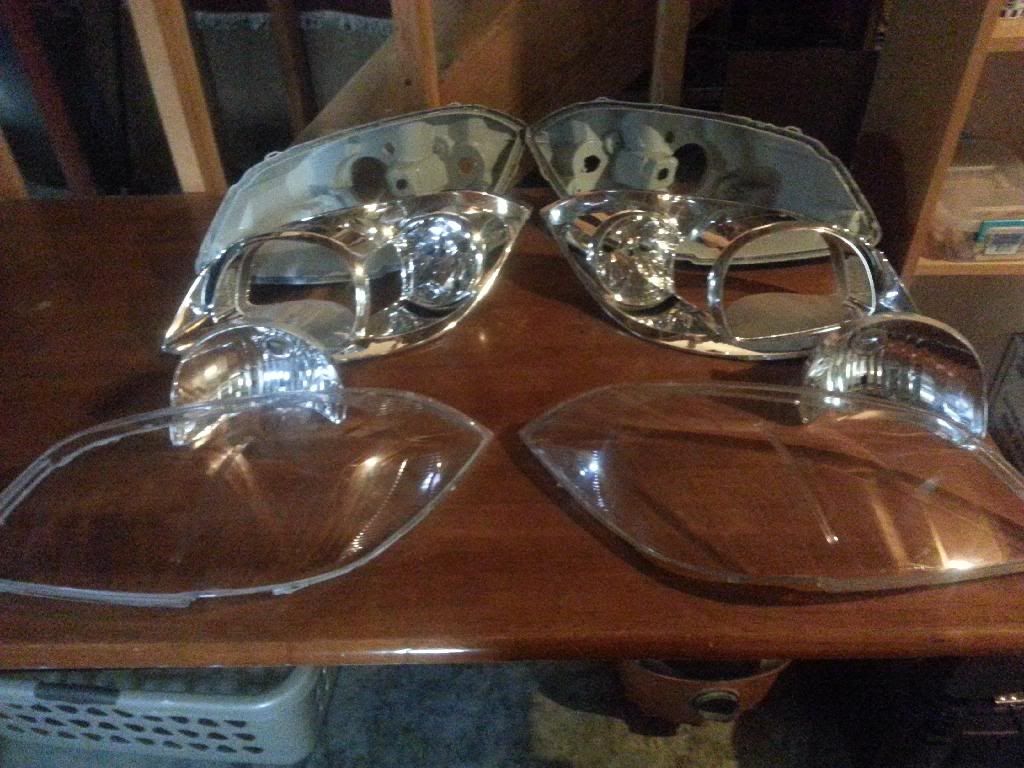

Pair Full disassemble

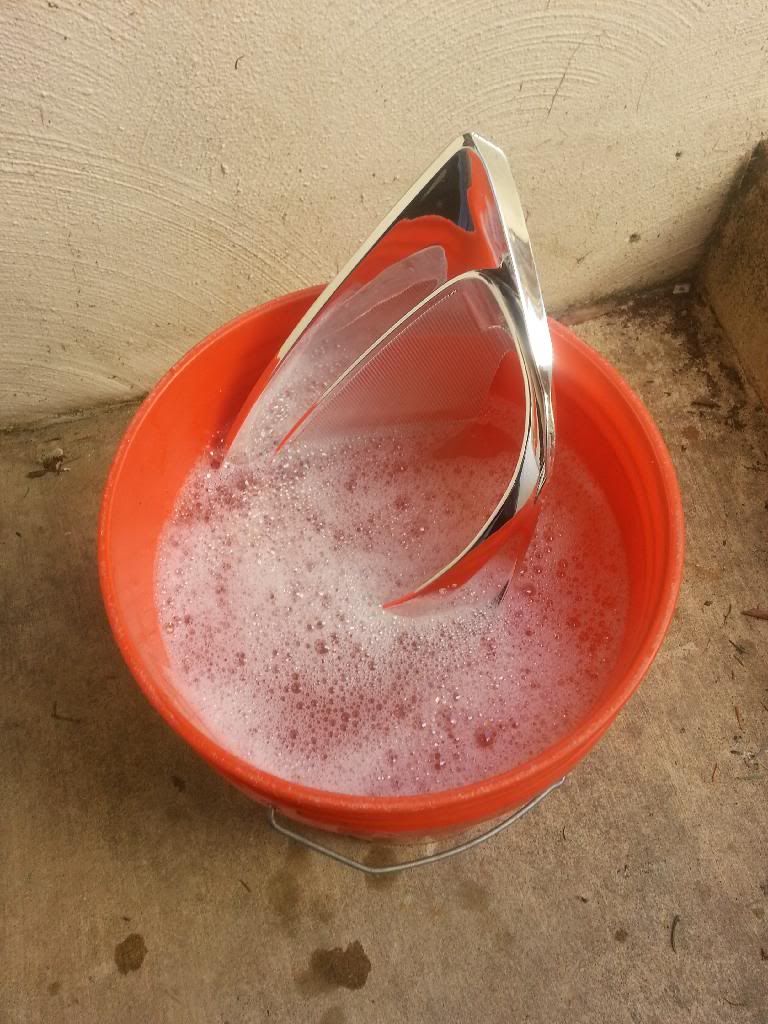

Housings & bowls soaking in outdoor strength bleach & water

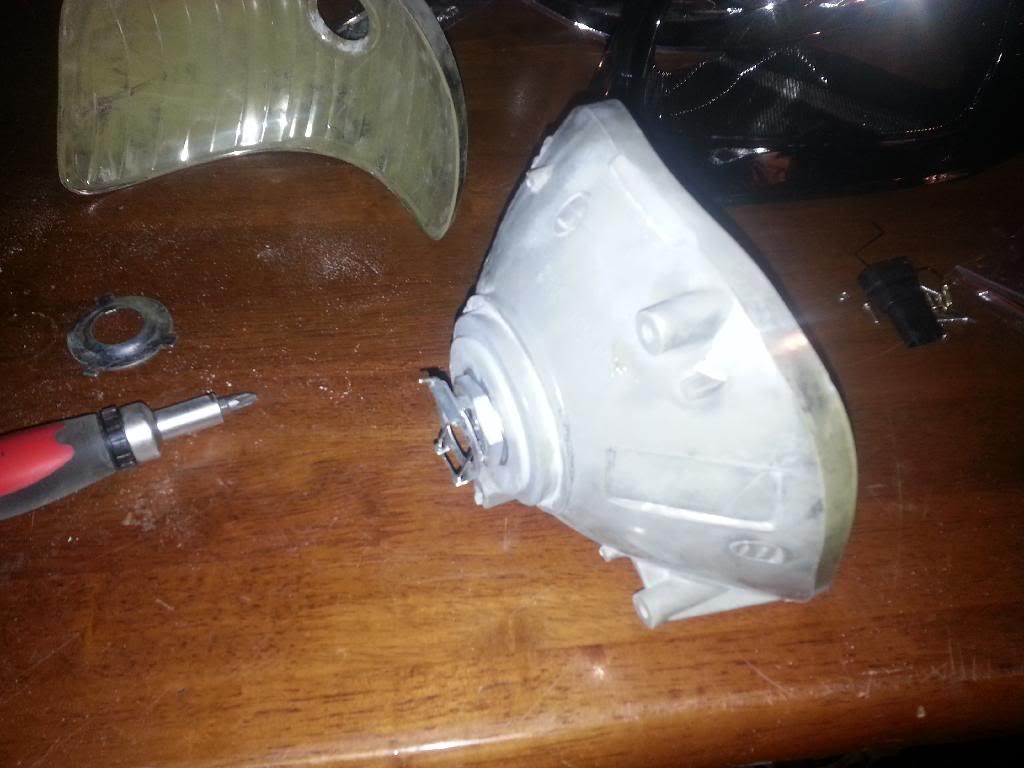

Removing most of the headlight Glue with heat gun & flat head screwdrivers.

Used headlight glue

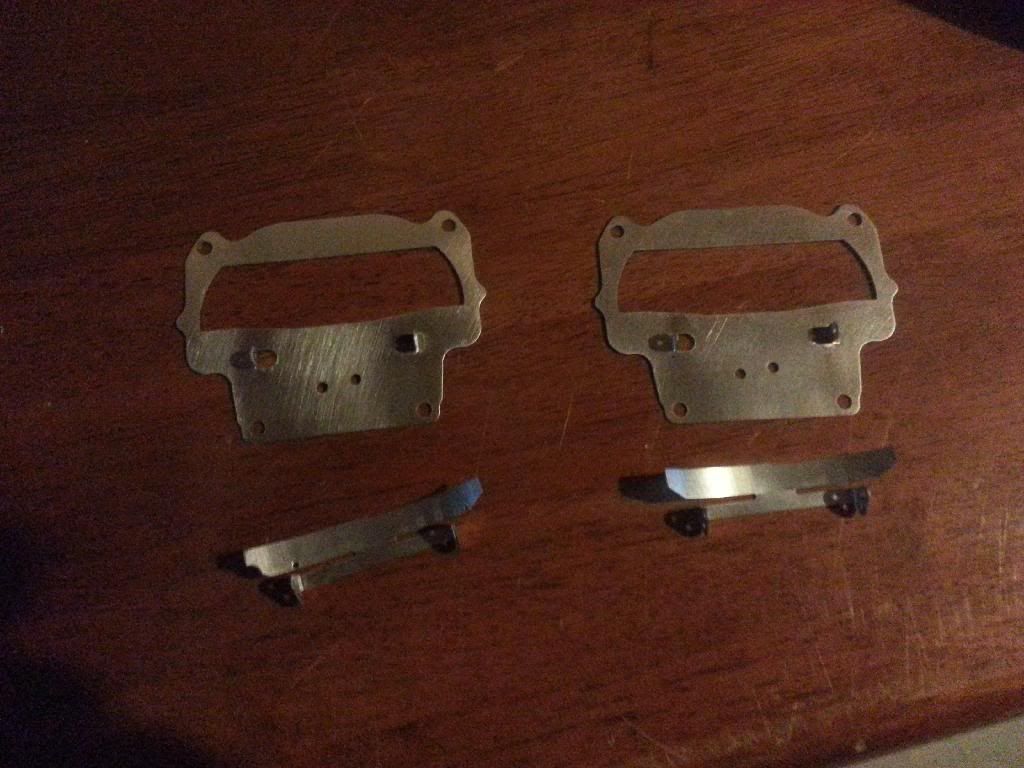

Took projectors apart to get the metal plate that makes your hi/low beam

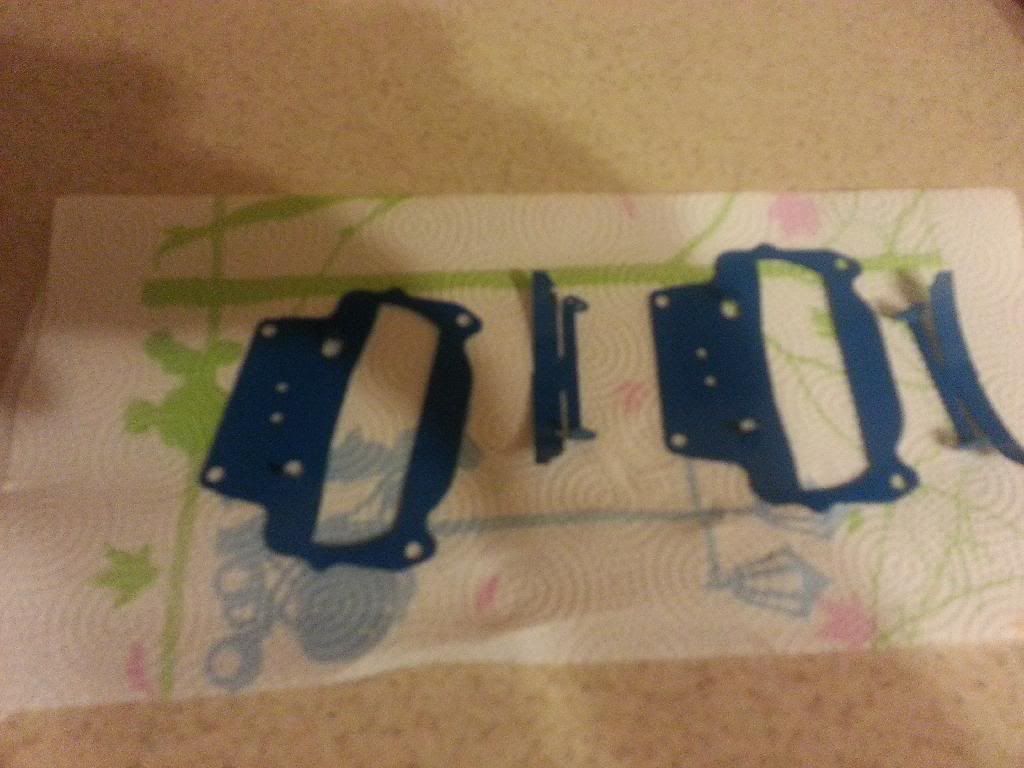

Painted the metal plate light blue

Heated up the metal plates in the oven to cure the paint

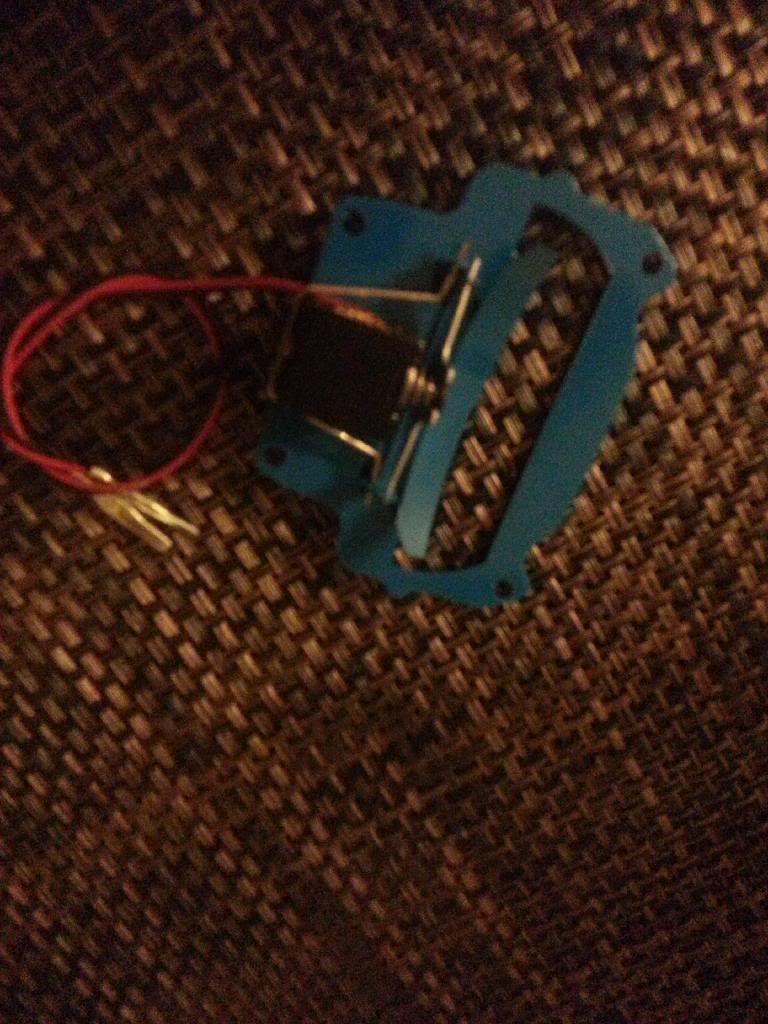

Blue metal plate with the solonoid back on

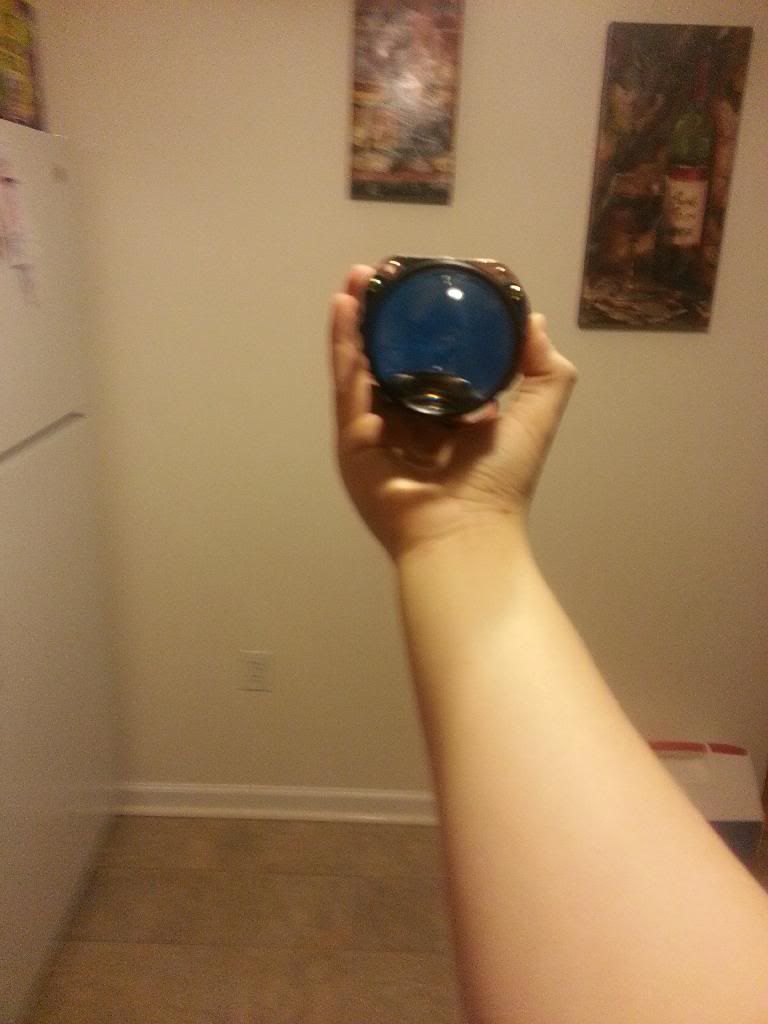

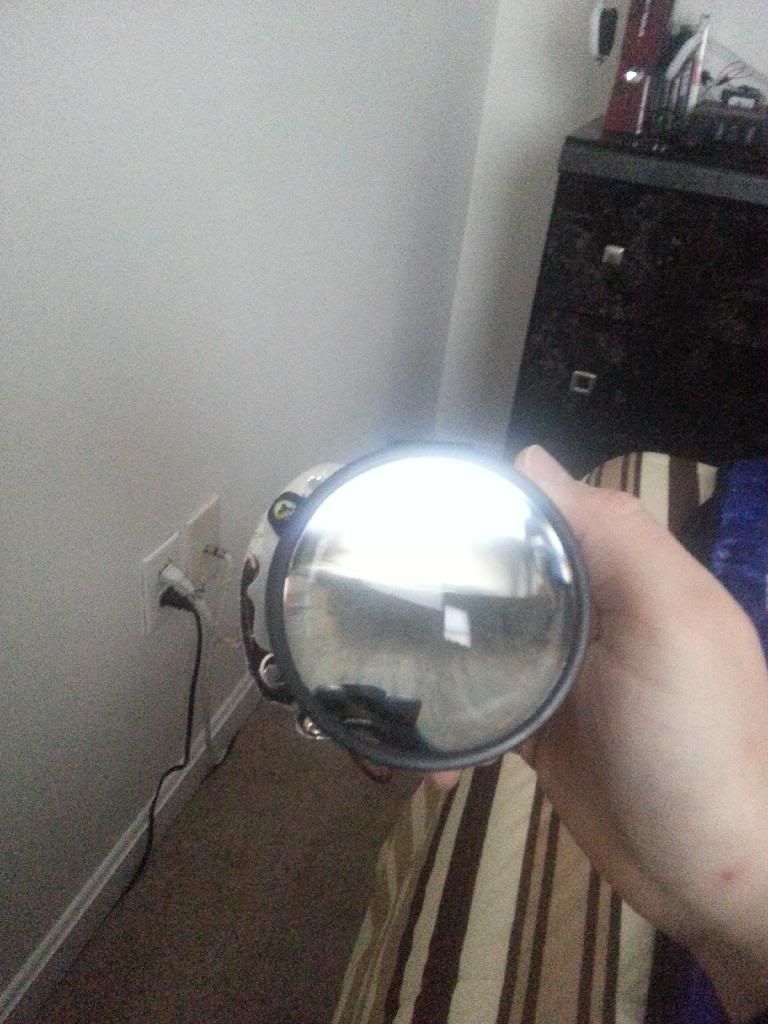

Projector put back together with painted solonoid plate

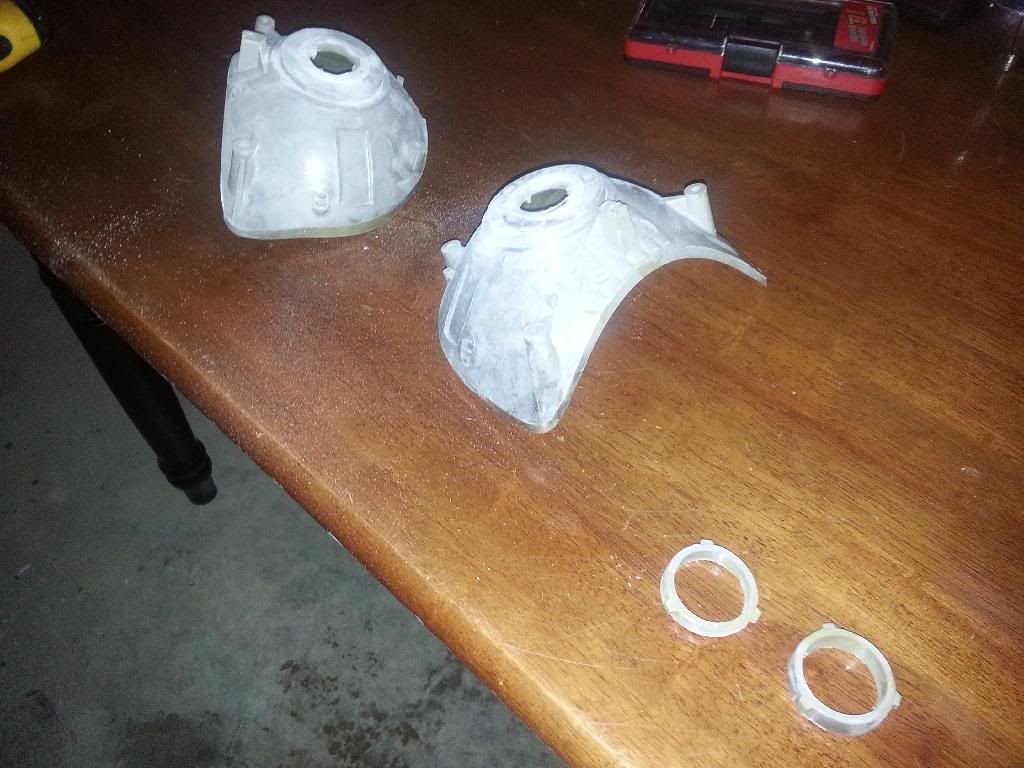

Used a multi tool to cut the rear rings behind the bowl for the projector to fit snug

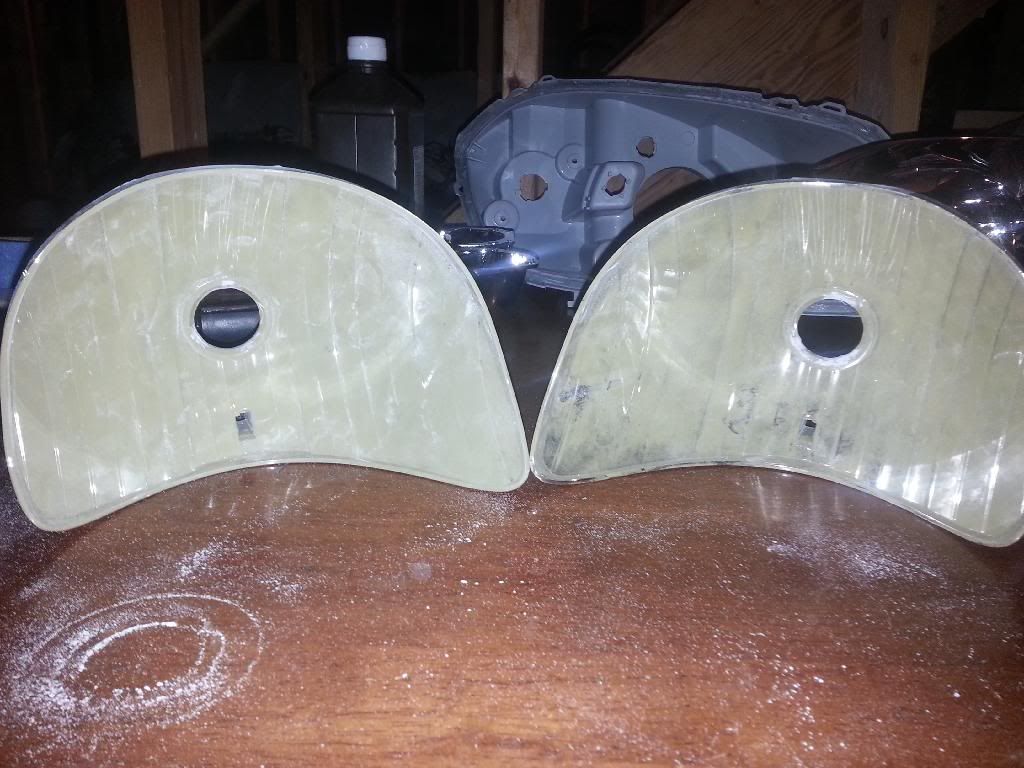

Used the sander on the multi tool to get a good smooth back after cutting the ring off


Dremel the 3 points in the bowl ring to get a smooth ring

Test fit with half the projector

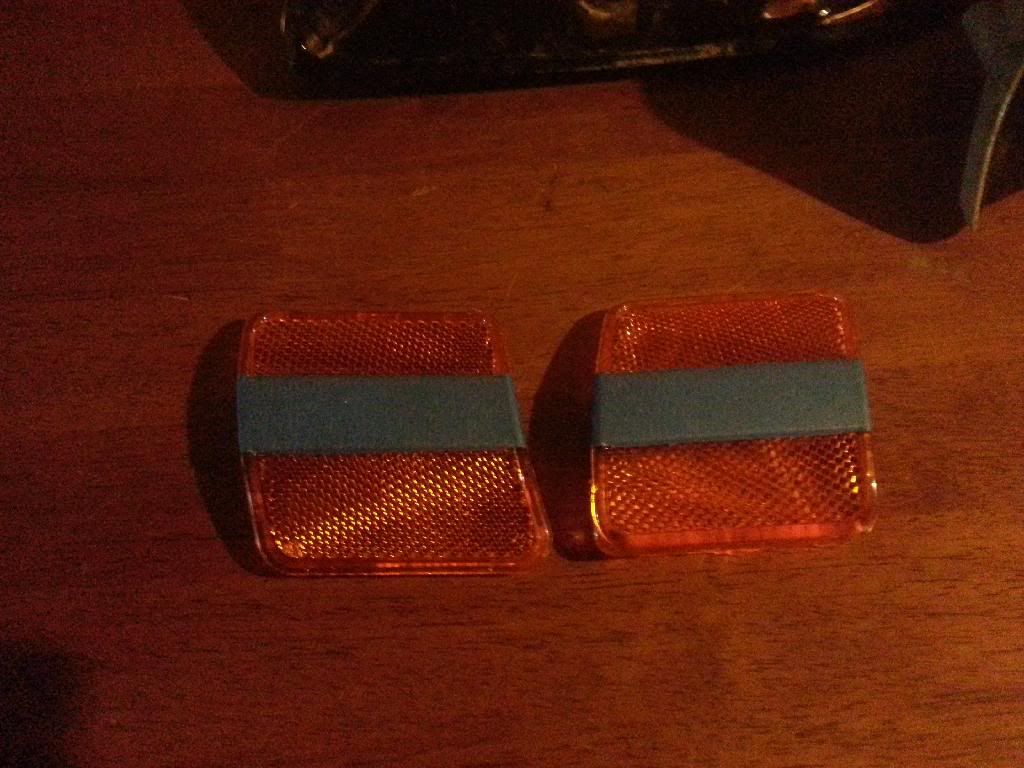

Taped off the middle part of the side reflectors

Primed the side reflectors

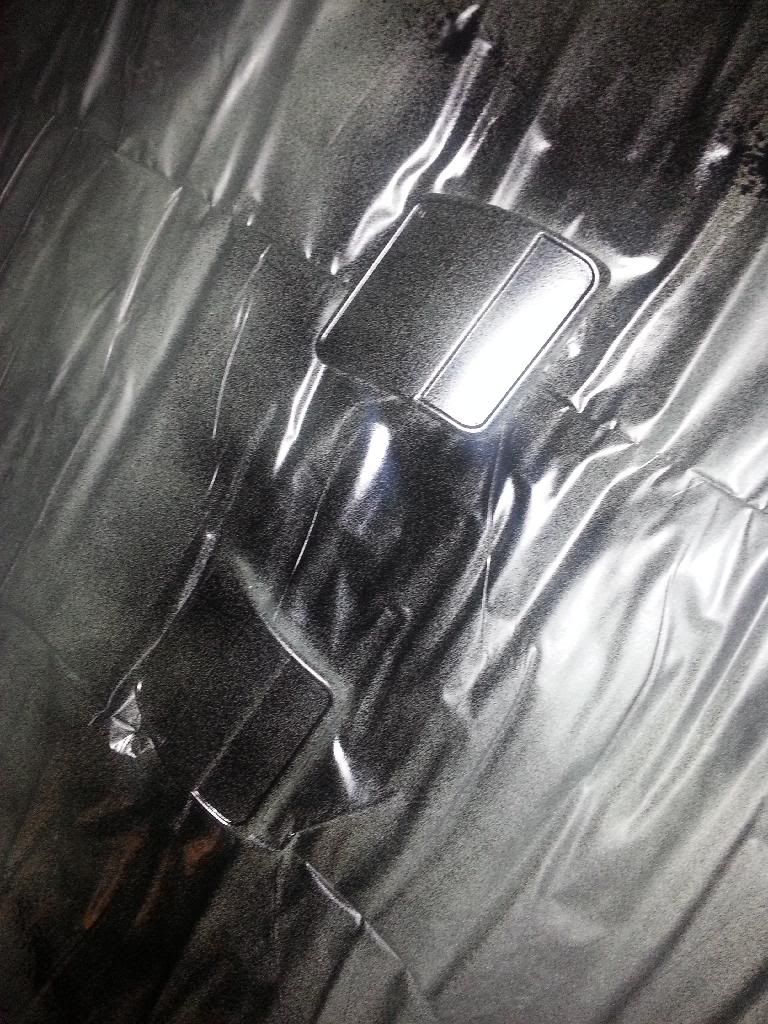

Painted side reflectors Satin Black

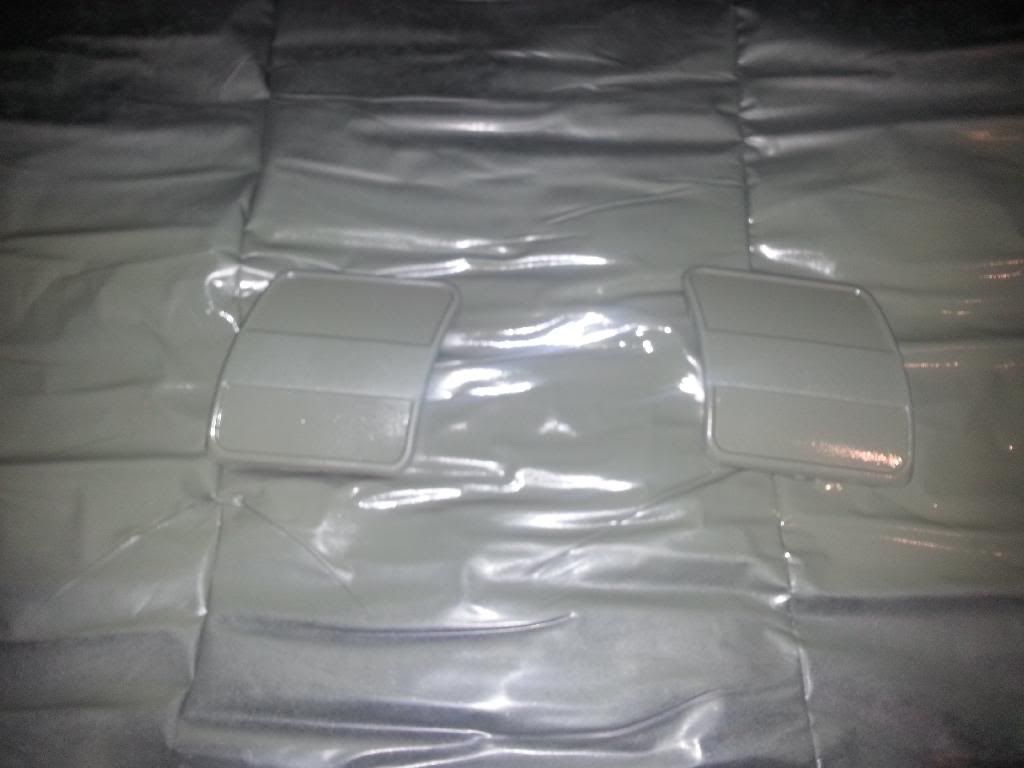

Side reflectors finished

Last edited by SCR3AMz; 01-27-2014 at 01:36 PM.
SCR3AMz is offline
Sponsored Links
Advertisement

post #2 of 61 (permalink) Old 01-23-2014, 12:55 PM Thread Starter
Cobalt Master
Staff Alumni
YourCobalt of the Quarter Winner
YourCobalt of the Month Winner



SCR3AMz's Avatar

Join Date: Oct 2012
Posts: 2,529
Well there's a start.
Update:

Sanded & Primed Housings, bowls & shrouds





Drilled holes in the back of the headlight plastic for the Ccfl connectors to go through

Drilled holes for the solonoid wires to go thought

First coat of blue on my gatling gun shrouds


Satin Black painted bowls

Satin Black painted Housings

Both drying for tomorrow we cure!

Soldered the 50w resistors & CCFL'S connectors onto the headlight harness

Both shrouds cured & on the mini h1 projectors

Put housings, bowls & reflectors in oven to cure the paint.


Ccfls silconed to the shrouds

Shrouds & projectors inside the bowls

Silconed ccfls wires & projectors wires so they don't move around in the bowls

Put together except the lenses



Rear of headlights with silconed holes

Whole thing put together and done
