2007 Pontiac G5 Rebuild and Powder Coated Front Calipers

Name: Jason (rains_crusader)
Location: Angola, IN
Means of Contact: PM

I have some rebuilt and powder-coated front calipers for sale. These came off a 5 lug, 2007 Pontiac G5 with front disc/rear drum set-up. I bought these because I'm to converting to 5 lug hubs but recently realized they aren't the same calipers as the LSJ. I already have LSJ rotors and want use those. So, I'll have to buy different calipers. I have $130 in the pair between rebuild kits($40), cost of the calipers/brackets($60) and powder coating cost($30 - I think it was actually $50 but I can't remember for sure). That works out to $65 a piece. I rebuilt these and put them on the shelf over the summer. They haven't been installed since the rebuild. There is only one small spot of out-gassing on the calipers which you can see in the close-up photo. Its not too noticeable and would probably be covered when the rims are in place.



^Here's the calipers

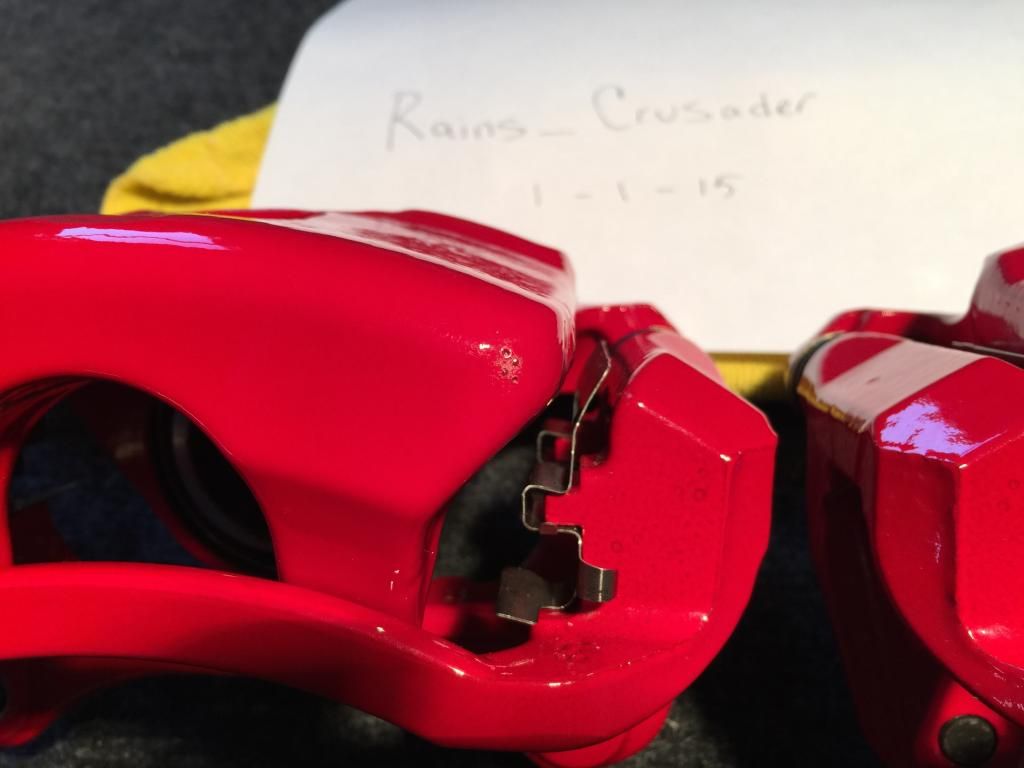

^Here's that small area of out-gassing

Asking for what I have in them ($130) plus shipping cost. That will vary based on your location. The further you are from Indiana, the more they will cost to ship.

These are sold as-is. If you are interested, let me know.

Thanks
Jason
rains_crusader is offline
Sponsored Links
Advertisement

post #2 of 25 (permalink) Old 01-01-2015, 11:05 AM
Cobalt Master

rrob5382's Avatar

Join Date: Apr 2013
Location: MI
Posts: 1,518
would those be the same as a 4 lug caliper then?

Quote:
Originally Posted by Plain Jane View Post
Speed isn't everything. Sometimes, you just need a little style and flare in your motoring.
rrob5382 is offline
post #3 of 25 (permalink) Old 01-01-2015, 11:15 AM Thread Starter
Veteran

rains_crusader's Avatar

Join Date: Sep 2012
Location: Fort Wayne, IN
Posts: 589
Garage
Quote:
Originally Posted by rrob5382 View Post
would those be the same as a 4 lug caliper then?

No, they are a little bigger than the 4 lug caliper but smaller than the LSJ caliper.

Different size calipers use different rotors. Outside diameter of the rotors are as follows:

4 Lug base: 256 mm
5 Lug base: 280 mm (these would be the rotors needed for the calipers I'm selling)
5 Lug Performance: 296 mm
rains_crusader is offline

post #4 of 25 (permalink) Old 01-01-2015, 11:25 AM
Cobalt Master

rrob5382's Avatar

Join Date: Apr 2013
Location: MI
Posts: 1,518
ah well that sucks, searching for calipers for the g5 doesn't bring up any difference or even any mention of 4 lug vs 5 lug on parts websites, only rear drum or rear disk..

Quote:
Originally Posted by Plain Jane View Post
Speed isn't everything. Sometimes, you just need a little style and flare in your motoring.
rrob5382 is offline
post #5 of 25 (permalink) Old 01-01-2015, 11:32 AM Thread Starter
Veteran

rains_crusader's Avatar

Join Date: Sep 2012
Location: Fort Wayne, IN
Posts: 589
Garage
I'm not sure. Someone else mentioned it's the same but I measured the 4 lug caliper on my Cobalt and it's different than these from the G5.
Maybe the 4 lug and 5 lug base brake systems for the G5 use the same caliper?


Sent from AutoGuide.com Free App

Last edited by rains_crusader; 01-01-2015 at 12:04 PM.
rains_crusader is offline
post #6 of 25 (permalink) Old 01-01-2015, 11:43 AM
Cobalt Master

rrob5382's Avatar

Join Date: Apr 2013
Location: MI
Posts: 1,518
i would measure mine but my car isn't home... although i am wondering if the difference is just in the bracket itself... if i had the money right now i'd buy them off you, if you still have them in a week ill take them though, little experimentation and what not... worst case, ill pick up a set of 5 lug rotors and have them drilled for the 4 lug pattern... need new rotors anyways

Quote:
Originally Posted by Plain Jane View Post
Speed isn't everything. Sometimes, you just need a little style and flare in your motoring.
rrob5382 is offline
post #7 of 25 (permalink) Old 01-01-2015, 01:35 PM Thread Starter
Veteran

rains_crusader's Avatar

Join Date: Sep 2012
Location: Fort Wayne, IN
Posts: 589
Garage
So, it appears the caliper is the same. Like you said, It's the bracket thats different.

I pulled my wheel and compared the two side by side. The caliper itself is the same. Here's two photos of the bracket differences.

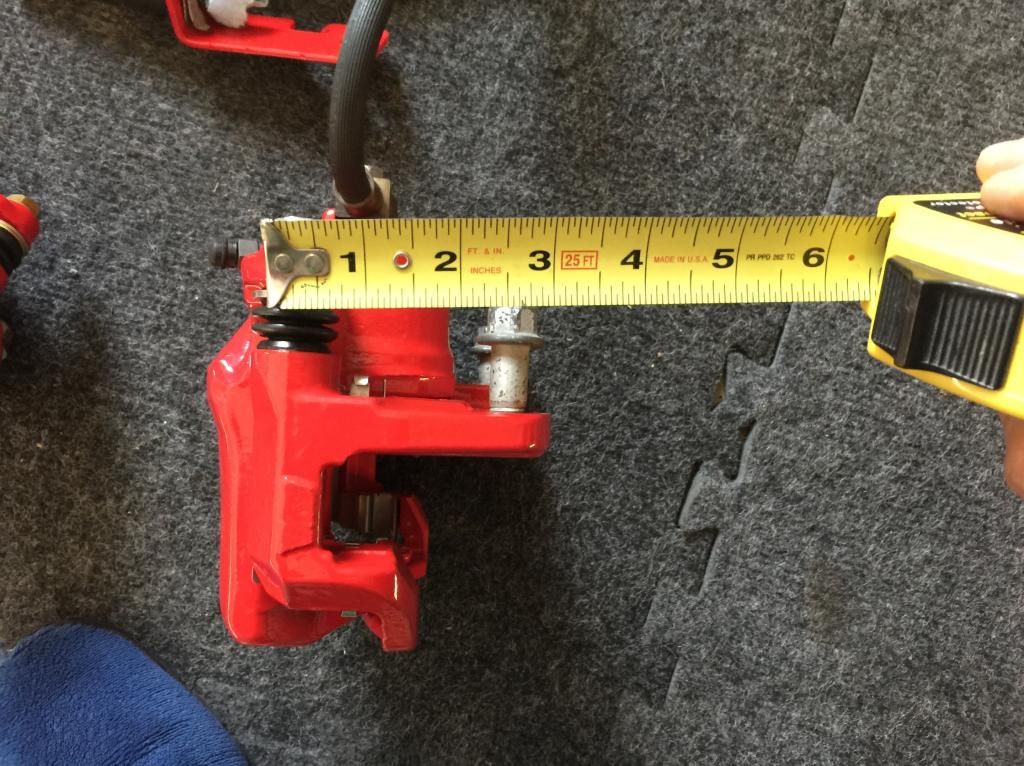

^G5 5-lug base Caliper bracket to knuckle

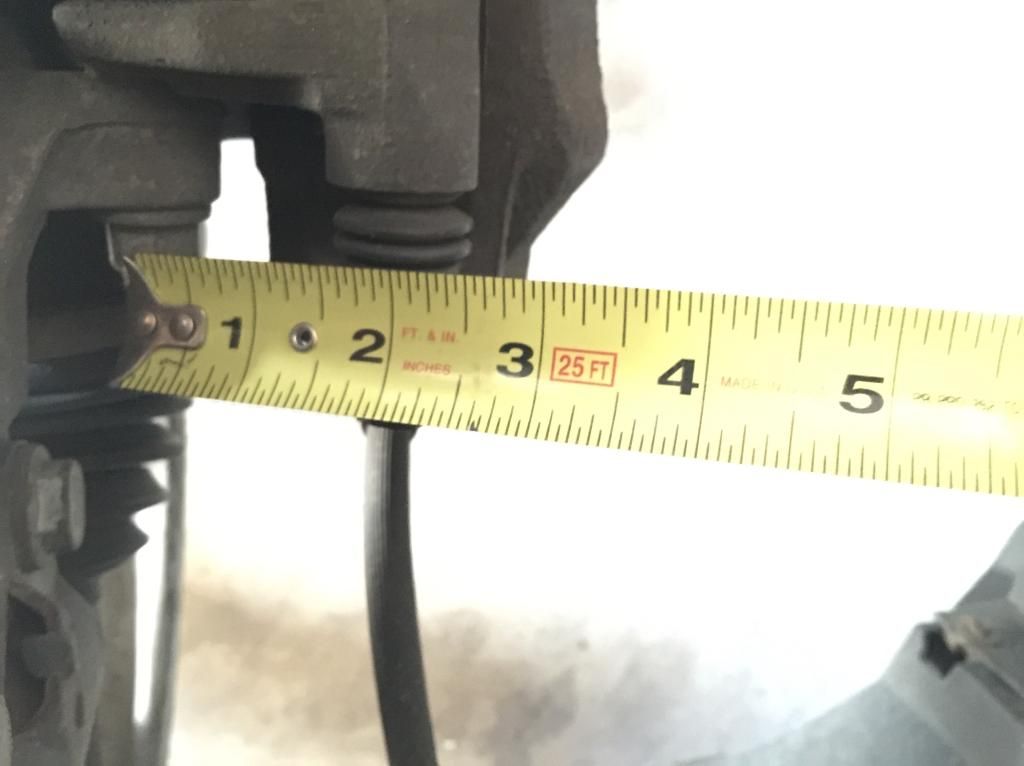

^Cobalt 4-lug base caliper bracket to knuckle


Looks like the 5-lug bracket is taller between the slide pin bolts and the knuckle mount bolts

---------- Post added at 01:35 PM ---------- Previous post was at 11:57 AM ----------

Quote:
Originally Posted by rrob5382 View Post
i would measure mine but my car isn't home... although i am wondering if the difference is just in the bracket itself... if i had the money right now i'd buy them off you, if you still have them in a week ill take them though, little experimentation and what not... worst case, ill pick up a set of 5 lug rotors and have them drilled for the 4 lug pattern... need new rotors anyways

Cool. I see your location is Michigan. Are you close to Indiana?


Sent from AutoGuide.com Free App

Last edited by rains_crusader; 01-01-2015 at 12:01 PM. Reason: typos
rains_crusader is offline
post #8 of 25 (permalink) Old 01-01-2015, 07:14 PM
Cobalt Master

rrob5382's Avatar

Join Date: Apr 2013
Location: MI
Posts: 1,518
Not exactly close, I wanna say about 5 or 6 hours from the border

---------- Post added at 11:14 PM ---------- Previous post was at 11:11 PM ----------

Actually I guess I'm about 4 hours from you... keep forgetting Indiana goes over that far

Quote:
Originally Posted by Plain Jane View Post
Speed isn't everything. Sometimes, you just need a little style and flare in your motoring.
rrob5382 is offline
post #9 of 25 (permalink) Old 01-01-2015, 07:27 PM Thread Starter
Veteran

rains_crusader's Avatar

Join Date: Sep 2012
Location: Fort Wayne, IN
Posts: 589
Garage
Ah. I was just thinking if you were close, it would save shipping cost.


Sent from AutoGuide.com Free App
rains_crusader is offline
post #10 of 25 (permalink) Old 01-10-2015, 11:09 AM Thread Starter
Veteran

rains_crusader's Avatar

Join Date: Sep 2012
Location: Fort Wayne, IN
Posts: 589
Garage
Quote:
Originally Posted by rrob5382 View Post
i would measure mine but my car isn't home... although i am wondering if the difference is just in the bracket itself... if i had the money right now i'd buy them off you, if you still have them in a week ill take them though, little experimentation and what not... worst case, ill pick up a set of 5 lug rotors and have them drilled for the 4 lug pattern... need new rotors anyways

If you're still interested in these, let me know guy
